Trijicon RMR fotavtrykk standard

Trijicon RMR footprint standard

Hvilken rødpunktsikter vil fungere med Trijicon-festet? Vil du kunne installere Holosun 507C på samme plate som Trijicon RMR rødpunktsikte sikte? Vi dekker full kompatibilitet av fotavtrykket i denne artikkelen.

Forklart kompatibilitet for fotavtrykk

Hva betyr et “fotavtrykk”? Begrepet fotavtrykk refererer til en struktur av sokler og skruehull på basen av det optiske apparatet.

Og hva betyr det hvis fotavtrykkene er kompatible? Hvert optisk sikte har en base for montering. Basen består av pinner på ulike posisjoner og hull for skruer som brukes til å feste siktet til festet.

Hvis to sikter bruker samme base for montering, sier vi at de deler samme fotavtrykk. I denne artikkelen viser vi hvilke rødpunktsikter som deler samme fotavtrykk.

Trijicon RMR fotavtrykksmønster

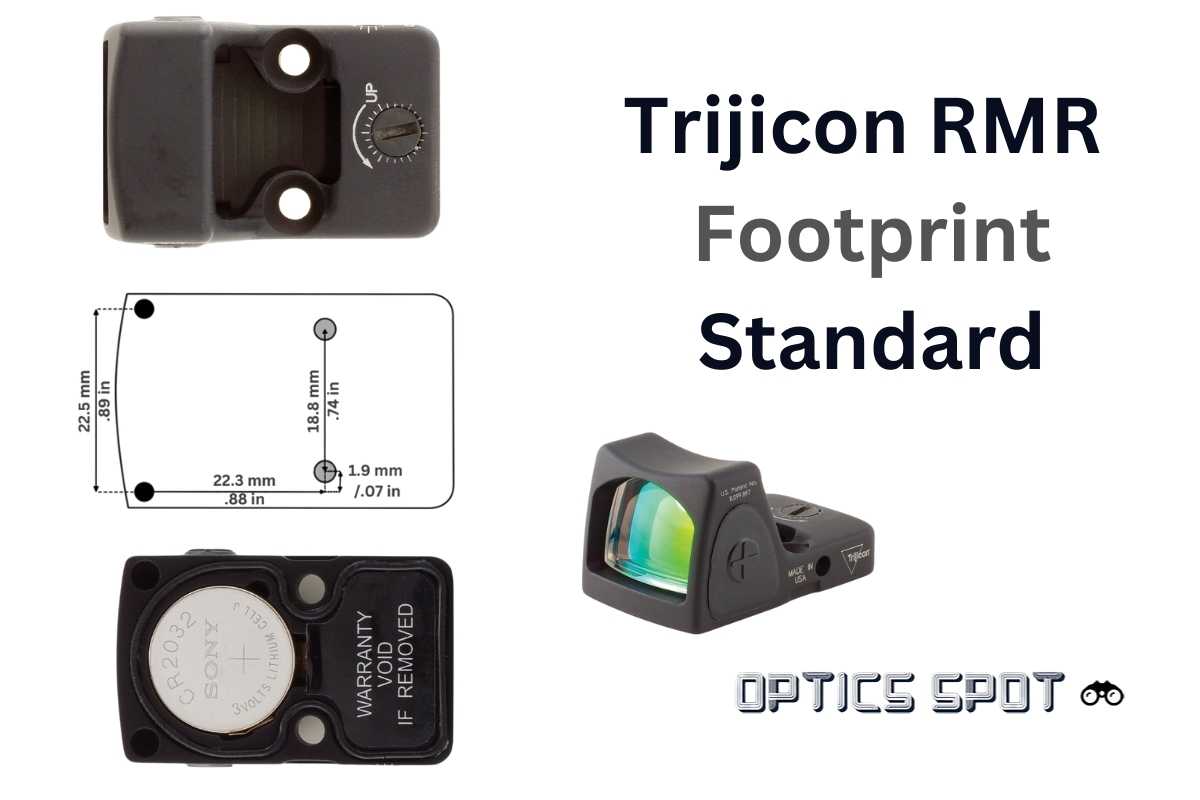

RMR fotavtrykk består av to sokler foran og to skruehull i midten av siktet.

Soklene foran er 22,5 mm / 0,89 tommer fra hverandre, hver plassert i hjørnet av fronten av siktet. Plasseringen av disse to soklene tilsvarer plasseringen av pinner som er på en monteringsflate for enhver montering for denne standarden.

Skruehullene er plassert omtrent i midten av det optiske apparatet. Disse fungerer for å feste siktet til monteringen. Disse to skruehullene er 18,8 mm / 0,74 tommer fra hverandre.

Skruene som skal brukes til disse skruehullene er alltid inkludert i pakken med siktet.

Kompatibel rødpunktsikter

RMR er en av de vanligste fotavtrykkene på markedet.

Nedenfor finner du en komplett liste over sikter som vil fungere med Trijicon-fotavtrykk.

Trijicon RMR standard

Rødpunktsikter med Trijicon RMR fotavtrykk

Vis alle

Hvordan montere rødpunktsikte med Trijicon RMR fotavtrykk

Det avhenger av hvilken enhet du vil montere den på.

Andre fotavtrykksstandarder

Det finnes mange forskjellige baser for rødpunktsikte sikter, men de andre mest vanlige er følgende:
